SINGLE SWINGING AXLE

The Swing Axle minimizes the in-vehicle shake when entering and exiting the bumps and pits on the road, with the two wheels moving independently. The system works by giving the angle of the mechanism on the axle. This is called a camber angle. Camber angle is also used in steering and suspension construction. We can produce Single Swing Axles have high load capacities. (12 tons)

SINGLE SWINGING AXLE | ADVANTAGES

  • Easy to assembly
  • Maximum performance at high speeds
  • Minimum shaking in bends
  • Easy installation
  • Minimum maintenance
  • Quite ride
  • High quality bearings
  • Corrosion-resisting
  • Durable

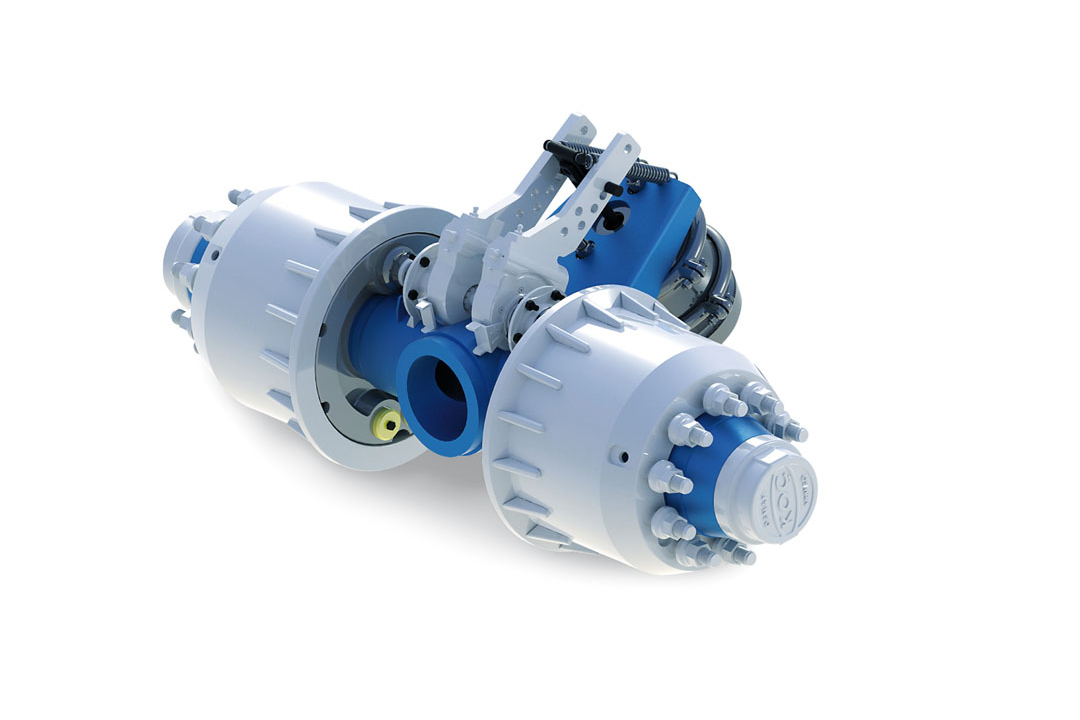

SINGLE SWINGING AXLE | PHOTOS

Photos are for visualization purposes only and may change.

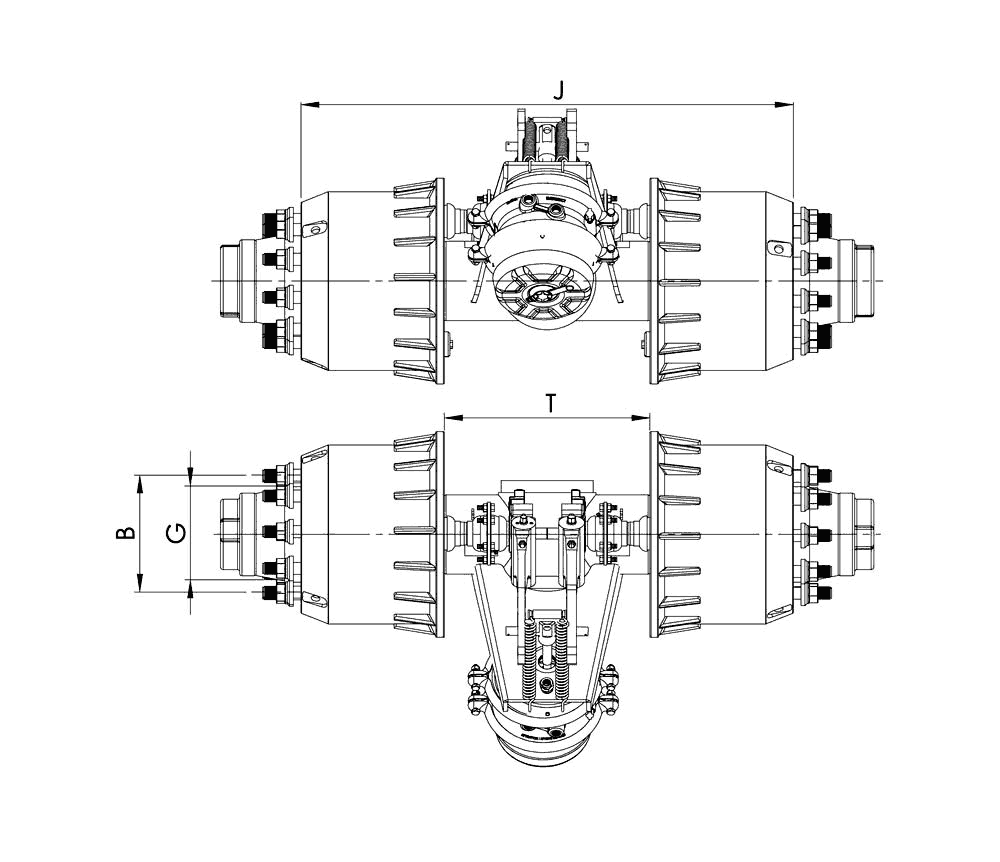

SINGLE SWINGING AXLE | TECHNICAL INFO

Product
Code		 Capacity
(Ton)		 Bearing Axle Beam
(mm)		 Brake Track Width J
(mm)		 T
(mm)		 G/B
(mm)
TAS LJ16 08 12 33213
218248		 Steel - Casting 305 x 190 900 400 175,5/225
m22x1.5-10
TAS LJ16 08-1 12 33213
218248		 Steel - Casting 330 x 200 900  400 175,5/225
m22x1.5-10
