SELF STEERING AXLE

We produce steerable axles from high strength steels. We design specially to prevent tire wear in narrow and maneuverable low roads. It has equipment on it to provide the orientation of the vehicle.

SELF STEERING AXLE | ADVANTAGES

  • Easy to assembly
  • Maximum performance at high speeds
  • Minimum shaking in bends
  • Easy installation
  • Minimum maintenance
  • Quite ride
  • High quality bearings
  • Corrosion-resisting
  • Durable

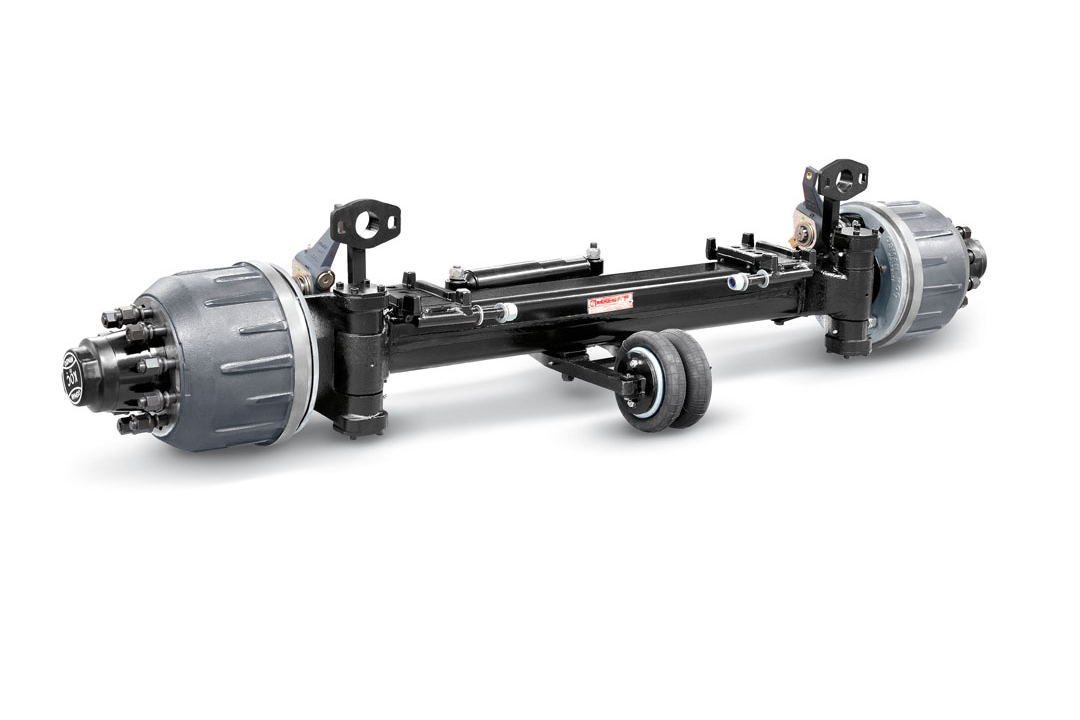

SELF STEERING AXLE | PHOTOS

Photos are for visualization purposes only and may change.

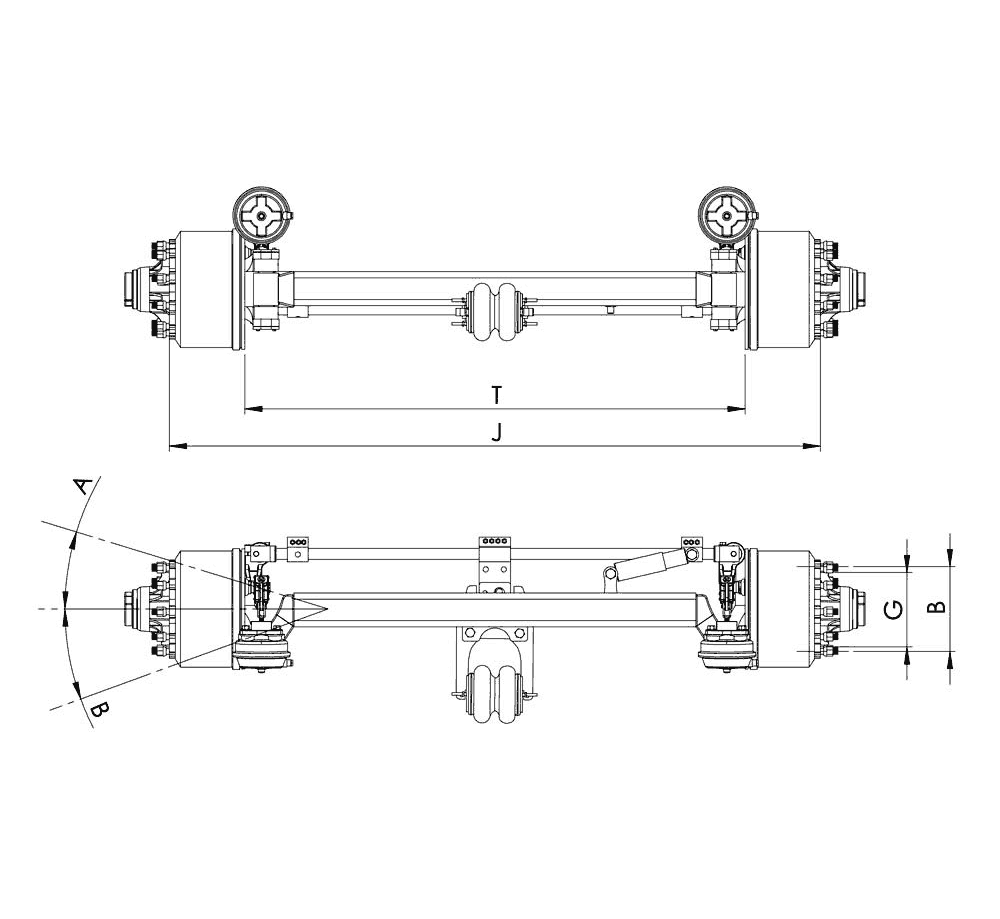

SELF STEERING AXLE | TECHNICAL INFO

Product
Code		 Capacity
(Ton)		 Bearing Axle Beam
(mm)		 Brake Track Width J
(mm)		 T
(mm)		 G/B
(mm)		 A
(*)		 B
(*)
TAS DM 09 9 33213
218248		 140 x 140 330 x 200 2930 2350 280,8/335
m22x1.5-10		 20° 20°
TAS DM 12 12 33213
218248		 140 x 140 420 x 220 2930 2360 280,8/335
m22x1.5-10		 20° 20°
TAS DM 14 14 33215
33019		 140 x 140 420 x 220 2930 2360 280,8/335
m22x1.5-10		 20° 20°
