PILOT AXLE

We produce steerable axles from high strength steels. We design specially to prevent tire wear in narrow and maneuverable low roads. It has equipment on it to provide the orientation of the vehicle.

PILOT AXLE | ADVANTAGES

  • Easy to assembly
  • Maximum performance at high speeds
  • Minimum shaking in bends
  • Easy installation
  • Minimum maintenance
  • Quite ride
  • High quality bearings
  • Corrosion-resisting
  • Durable

PILOT AXLE | PHOTOS

Photos are for visualization purposes only and may change.

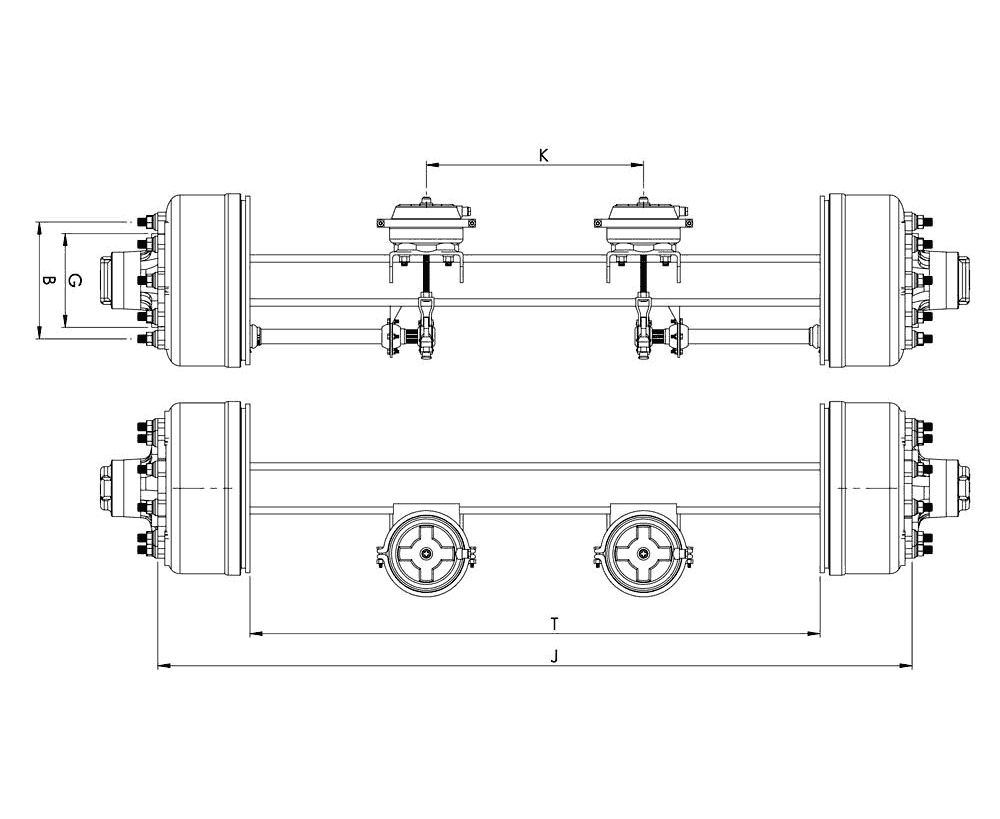

PILOT AXLE | TECHNICAL INFO

Product
Code		 Capacity
(Ton)		 Bearing Axle Beam
(mm)		 Brake Track Width J
(mm)		 K
(mm)		 T
(mm)		 G/B
(mm)
TAS HTP 09 9 33310
33116		 120 x 120 420 x 180 2070 570 1500 280.8/335
m22x1.5-10
TAS PL 9 9 33213
218248		 140 x 140 420 x 180 2070 570 1500 280.8/335
m22x1.5-10
TAS PL 10 10 33213
218248		 140 x 140 420 x 200 2070 570 1500 280.8/335
m22x1.5-10
TAS PL 11 11 33213
218248		 140 x 140 420 x 200 2070 570 1540 280.8/335
m22x1.5-10
TAS PL 12 12 33215
33019		 140 x 140 420 x 220 2070 570 1500 280.8/335
m22x1.5-10
