AIR SUSPENSION AXLE GROUP

In air suspension system, the pressure of the air blowers can be changed. The aim of this system is to ensure maximum contact between the road and the tires. In this way, you can brake more healthily and quickly change direction with the steering wheel. We can produce air suspension axles with different capacities.

AIR SUSPENSION AXLE GROUP | ADVANTAGES

  • Maximum driving comfort in rough roads
  • Reduces swinging to a minimum when cornering
  • Can increase load capacity up to 36 tons
  • Easy to assembly
  • High quality bearings
  • Maximum performance at high speeds
  • Minimum shaking in bends
  • Easy installation
  • Minimum maintenance
  • Quite ride
  • Corrosion-resisting
  • Durable

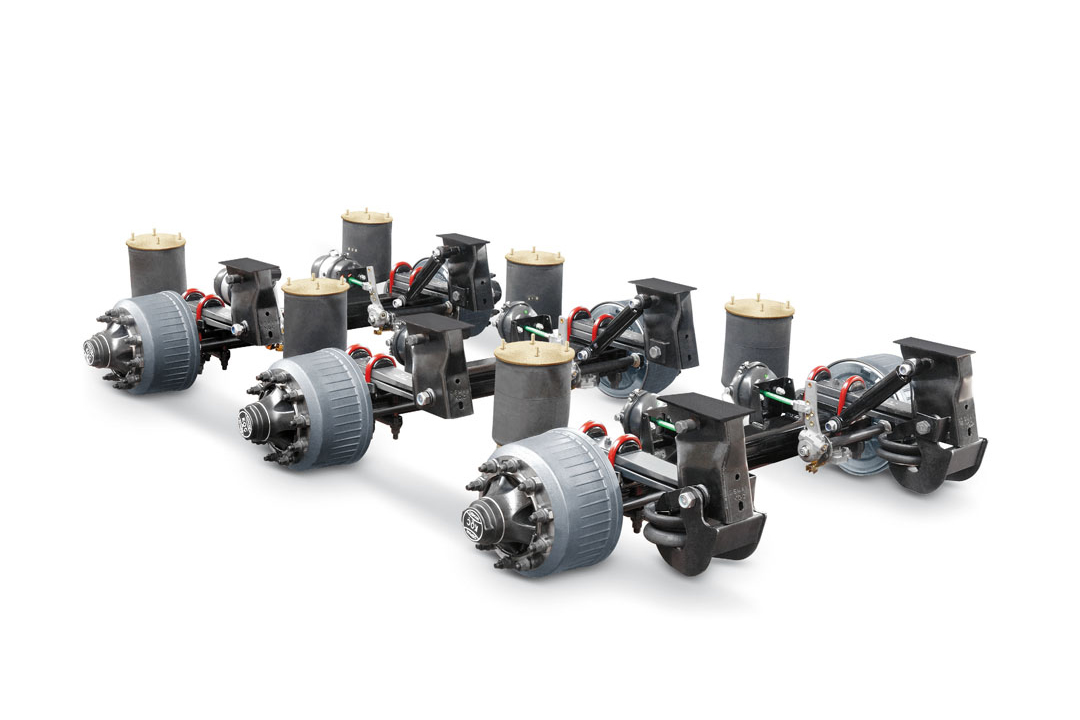

AIR SUSPENSION AXLE GROUP | PHOTOS

Photos are for visualization purposes only and may change.

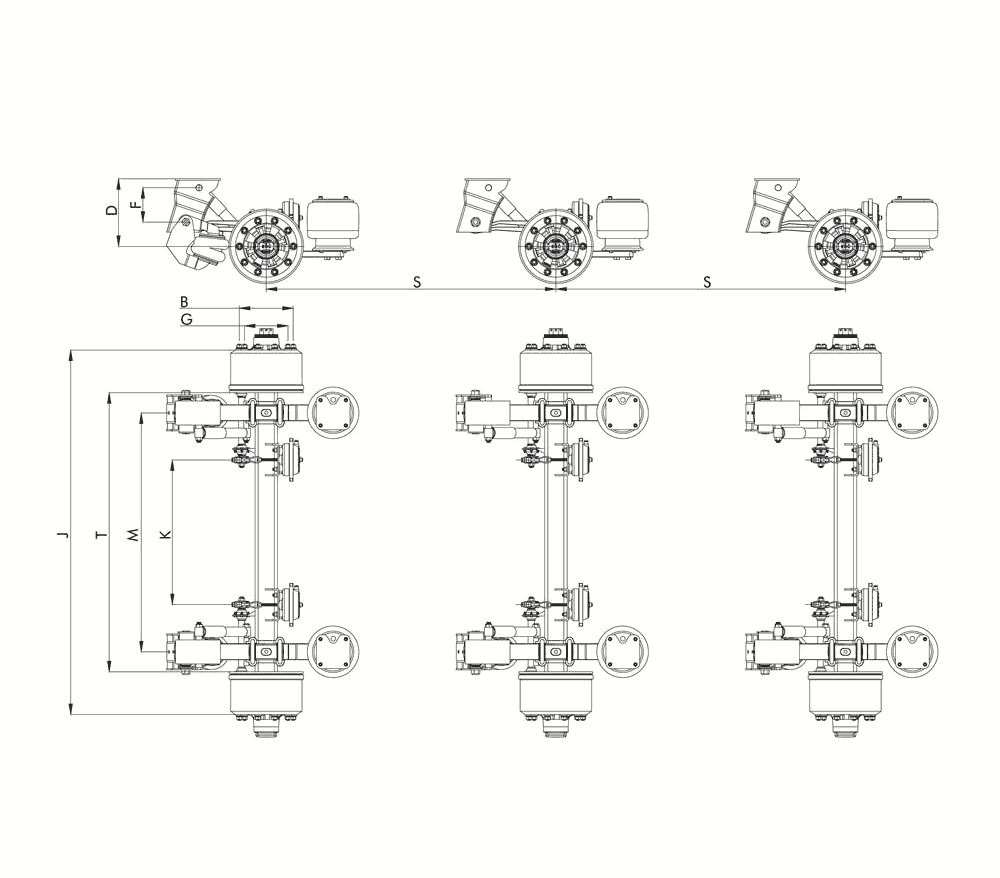

AIR SUSPENSION AXLE GROUP | TECHNICAL INFO

Product
Code		 Capacity
(Ton)		 Bearing Axle Beam
(mm)		 Brake Track Width J
(mm)		 K
(mm)		 M
(mm)		 T
(mm)		 S
(mm)		 D
(mm)		 F
(mm)		 G/B
(mm)
TAS HSJ 09 3 x 9 33213
218248		 140 x 140 330 x 200 1820 365 900 1290 1350 230 270 175,5/225
m22x1.5-10
TAS HSHP 09 3 x 9 33310
33116		 120 x 120 420 x 180 2070 570 1300 1500 1350 385 270 280,8/335
m22x1.5-10
TAS HS 09 3 x 9 33213
218248		 120 x 120 420 x 180 2070 570 1300  1500 1350 385 270 280,8/335
m22x1.5-10
TAS HS 11 3 x 11 33213
218248		 140 x 140 420 x 200 2070 570 1300  1500 1350 429 270 280,8/335
m22x1.5-10
TAS HS 12 3 x 12 33213
218248		 140 x 140 420 x 220 2070 570 1300  1500 1350 429 270 280,8/335
m22x1.5-10
