24 INCH TRILEX W BOGIE AXLE

Our Trilex Bogie Axles are suitable for 24 inch wheels/rims. We can produce trilex bogie axles with different capacities. (12-16 tonnes) We produce this axles from high strength steels. Thanks to this system, it is ensured that heavy loads can be transported comfortably even in difficult terrain conditions.

24 INCH TRILEX W BOGIE AXLE | ADVANTAGES

  • Easy to assembly
  • Maximum performance at high speeds
  • Minimum shaking in bends
  • Easy installation
  • Minimum maintenance
  • Quite ride
  • High quality bearings
  • Corrosion-resisting
  • Durable

24 INCH TRILEX W BOGIE AXLE | PHOTOS

Photos are for visualization purposes only and may change.

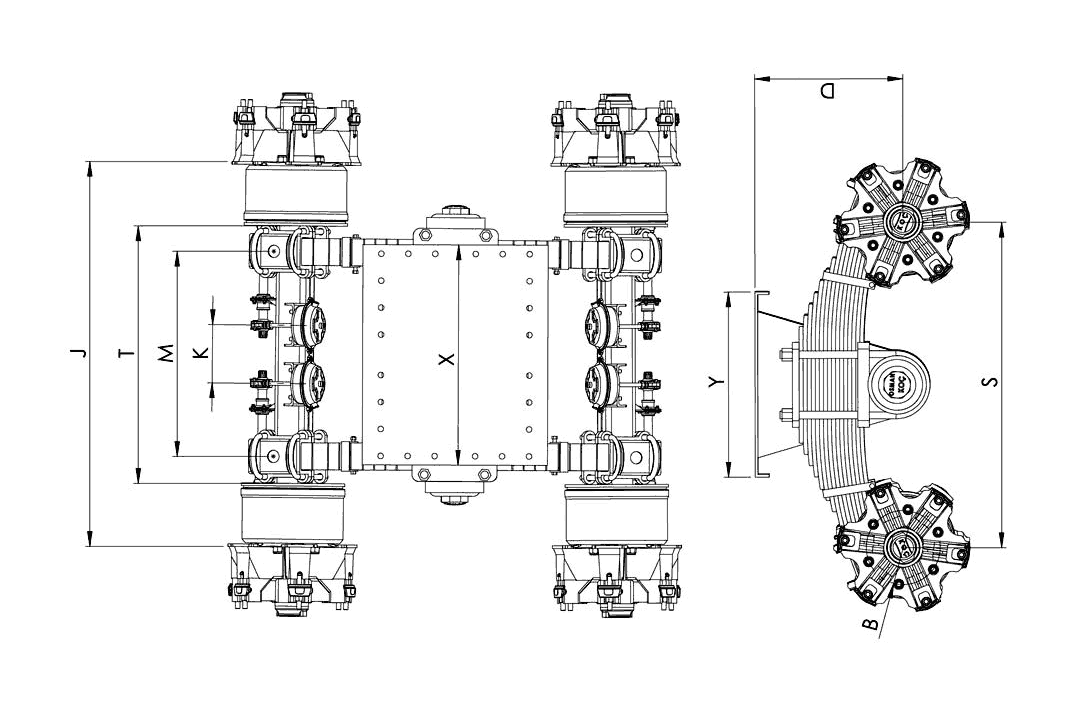

24 INCH TRILEX W BOGIE AXLE | TECHNICAL INFO

Product
Code		 Capacity
(Ton)		 Bearing Axle Beam
(mm)		 Brake Track Width J
(mm)		 K
(mm)		 M
(mm)		 T
(mm)		 S
(mm)		 D
(mm)		 X/Y
(mm)		 B
(mm)
TAS 20 JTM 12 2 x 12 33213
218248		 140 x 140 420 x 220 1700 250 907 1180 1550 690 980/824 0 mm
TAS 20 JTM 14 2 x 14 580-572
594-592A		 140 x 140 420 x 220 1700 250 907 1180 1550 690 980/824 0 mm
TAS 20 JTM 16 2 x 16 32314
32222		 140 x 140 420 x 220 1700 250 907 1180 1550 690 980/824 0 mm

Do you want to get more information about 24 INCH TRILEX W BOGIE AXLE?

Write us your inquiry.

Get quote from us about your trailer axle needs. Tell us all the details of your inquiry.
