10 BOLTS TANDEM AXLE GROUP

Stud is the name given to bolts to help secure the wheel. It is also called bolts that connect the wheel axle shaft. We can produce 10 Studs Tandem Axles have 9-16 tonnes of capacity. We produce tandem axles from high strength steels.

10 BOLTS TANDEM AXLE GROUP | ADVANTAGES

  • Easy to assembly
  • Maximum performance at high speeds
  • Minimum shaking in bends
  • Easy installation
  • Minimum maintenance
  • Quite ride
  • High quality bearings
  • Corrosion-resisting
  • Durable

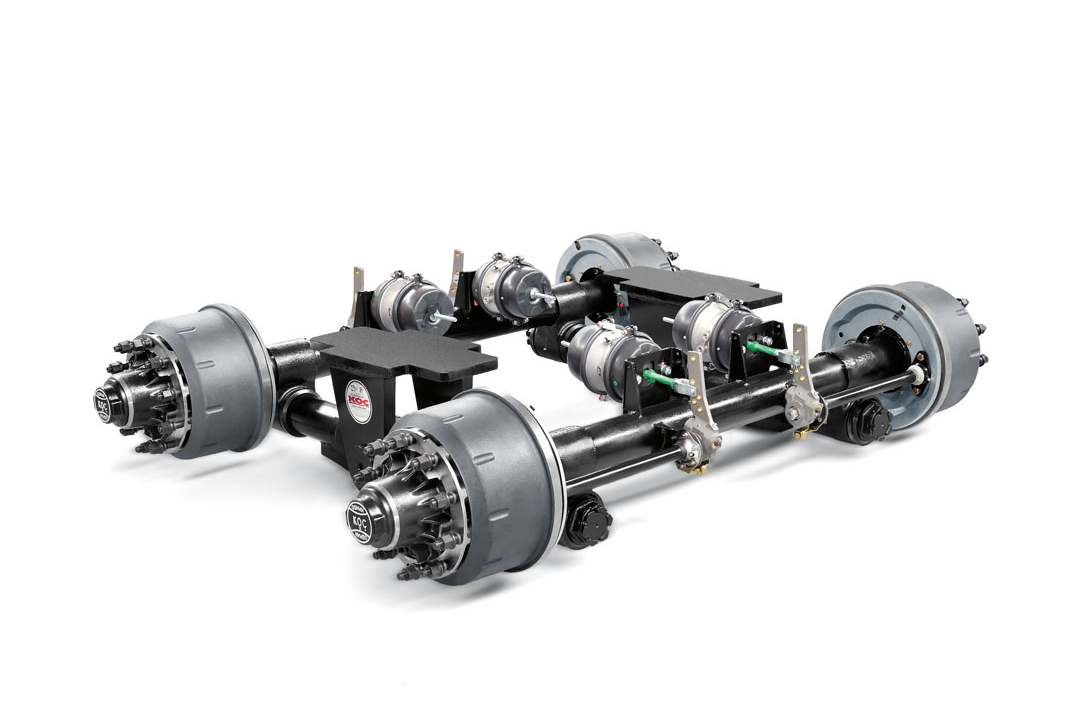

10 BOLTS TANDEM AXLE GROUP | PHOTOS

Photos are for visualization purposes only and may change.

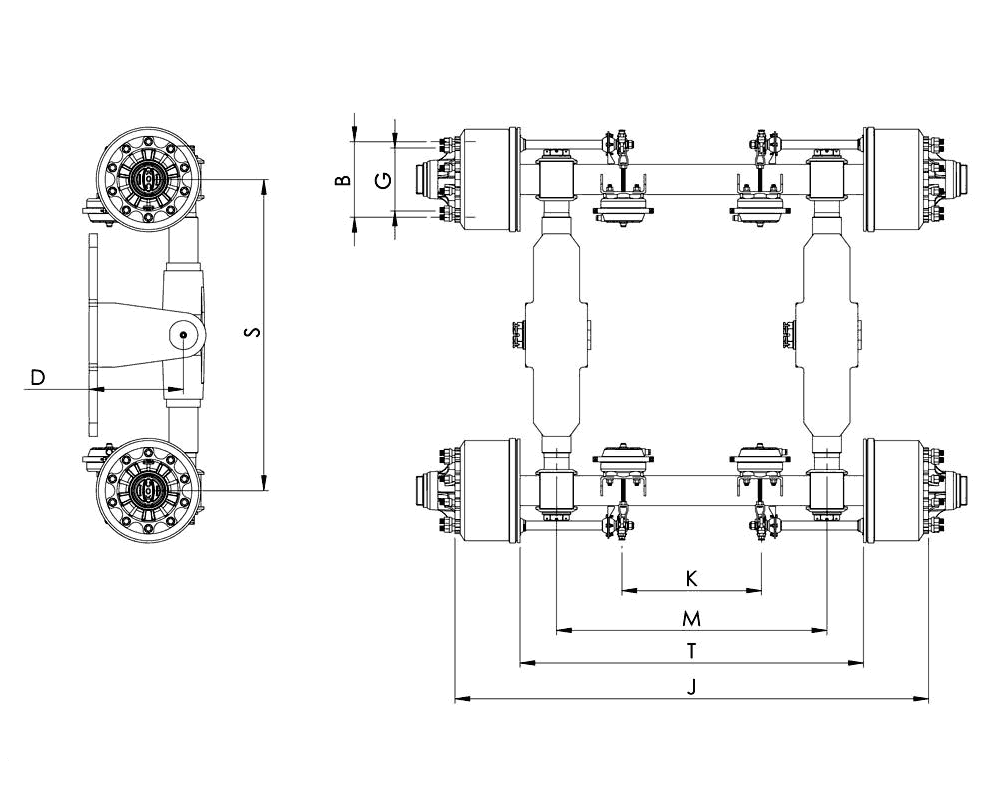

10 BOLTS TANDEM AXLE GROUP | TECHNICAL INFO

Product
Code		 Capacity
(Ton)		 Bearing Axle Beam
(mm)		 Brake Track Width J
(mm)		 K
(mm)		 M
(mm)		 T
(mm)		 S
(mm)		 D
(mm)		 G/B
(mm)
TAS IMT 14 2 x 14 33019
33215		 Ø 133 420 x 220 2500 1000 1490 1930 1350 Specific 280.8/335
m22x1.5-10
TAS IMT 16 2 x 16 32314
32222		 Ø 152 420 x 220 2500 1000 1360 1930 1350 Specific 280.8/335
m22x1.5-10
