10 BOLTS W BOGIE AXLE LIGHT TYPE

Stud is the name given to bolts to help secure the wheel. It is also called bolts that connect the wheel axle shaft. We can produce 10 Studs Light Type Bogie Axles have 12-16 tonnes of capacity. We produce bogie axles from high strength steels.

10 BOLTS W BOGIE AXLE LIGHT TYPE | ADVANTAGES

  • Easy to assembly
  • Maximum performance at high speeds
  • Minimum shaking in bends
  • Easy installation
  • Minimum maintenance
  • Quite ride
  • High quality bearings
  • Corrosion-resisting
  • Durable

10 BOLTS W BOGIE AXLE LIGHT TYPE | PHOTOS

Photos are for visualization purposes only and may change.

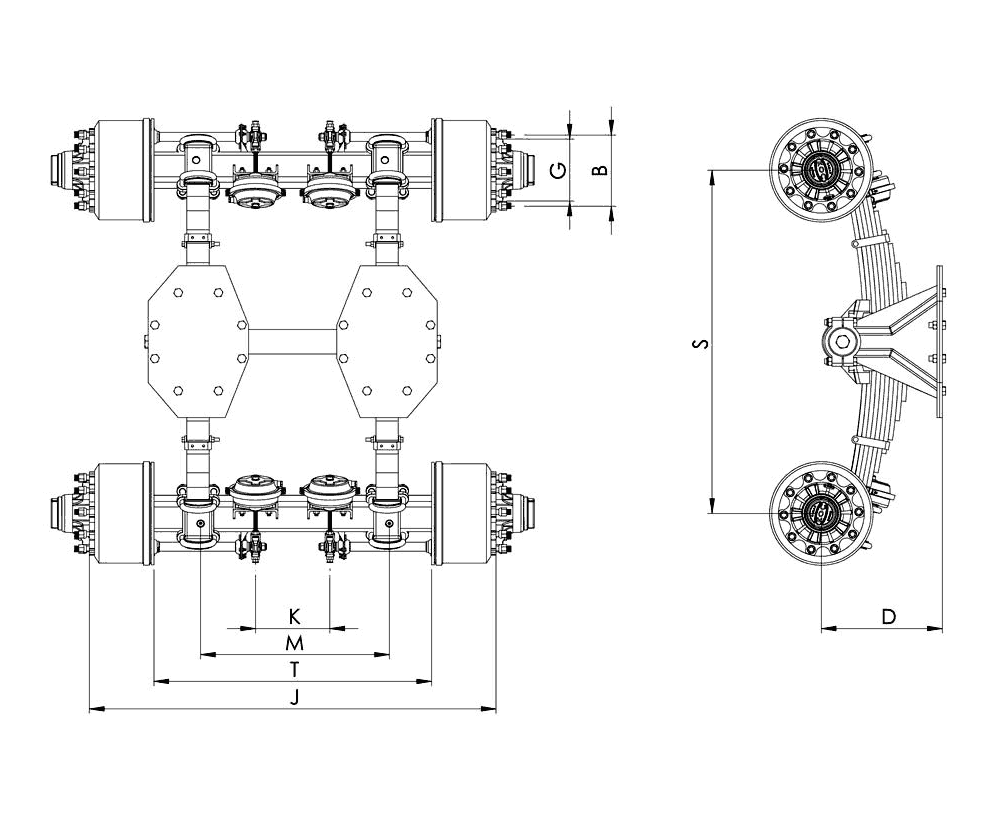

10 BOLTS W BOGIE AXLE LIGHT TYPE | TECHNICAL INFO

Product
Code		 Capacity
(Ton)		 Bearing Axle Beam
(mm)		 Brake Track Width J
(mm)		 K
(mm)		 M
(mm)		 T
(mm)		 S
(mm)		 D
(mm)		 G/B
(mm)
TAS HTM 12 2 x 12 33213
218248		 140 x 140 420 x 200 1820 330 840 1250 1550 520-570 280.8/335
m22x1.5-10
TAS HTM 14 2 x 14 33215
33019		 140 x 140 420 x 200 1820 330 840 1250 1550 520-570 280.8/335
m22x1.5-10
TAS HTM 16 2 x 16 32314
32222		 150 x 150 420 x 200 1820 330 840 1250 1550 520-570 280.8/335
m22x1.5-10

Do you want to get more information about 10 BOLTS W BOGIE AXLE LIGHT TYPE?

Write us your inquiry.

Get quote from us about your trailer axle needs. Tell us all the details of your inquiry.
