10 BOLTS W BOGIE AXLE

Stud is the name given to bolts to help secure the wheel. It is also called bolts that connect the wheel axle shaft. We can produce 10 Studs Bogie Axles have 9 tonnes of capacity. We produce bogie axles from high strength steels. Our bogie axles are compatible with 22.5 inch brake discs.

10 BOLTS W BOGIE AXLE | ADVANTAGES

  • Easy to assembly
  • Maximum performance at high speeds
  • Minimum shaking in bends
  • Easy installation
  • Minimum maintenance
  • Quite ride
  • High quality bearings
  • Corrosion-resisting
  • Durable

10 BOLTS W BOGIE AXLE | PHOTOS

Photos are for visualization purposes only and may change.

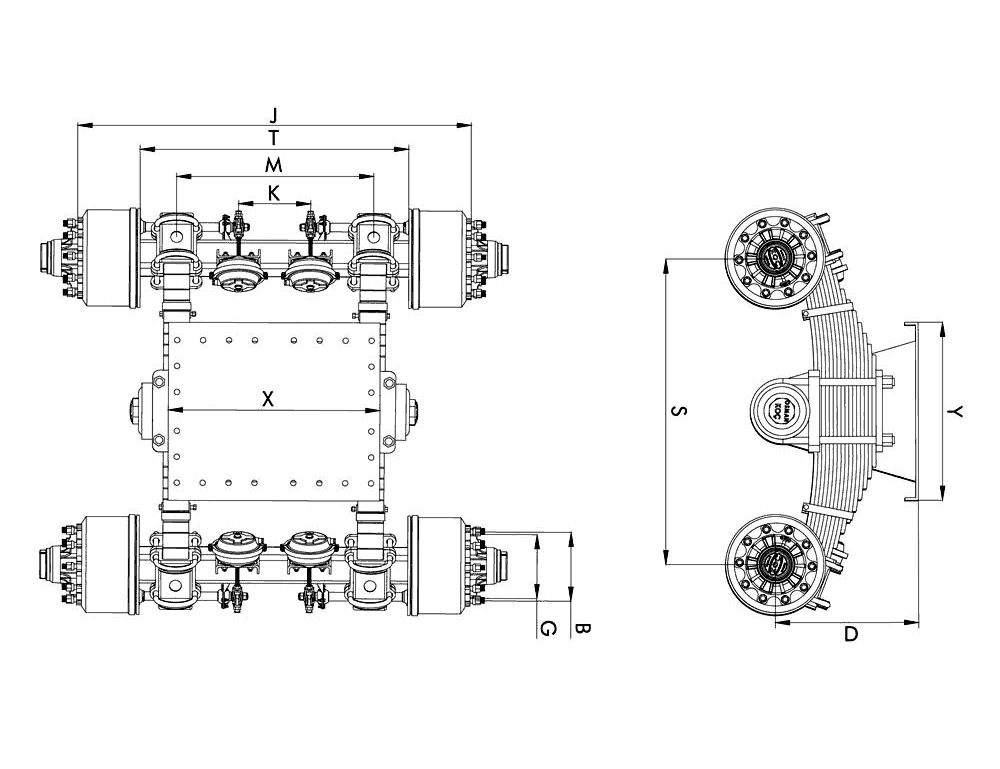

10 BOLTS W BOGIE AXLE | TECHNICAL INFO



Product
Code		 Capacity
(Ton)		 Bearing Axle Beam
(mm)		 Brake Track Width J
(mm)		 M
(mm)		 T
(mm)		 S
(mm)		 D
(mm)		 F
(mm)		 G/B
(mm)		 Offset
(mm)
TAS AT 009 9 33213
218248		 120 x 120 Disc (22.5*) 2070 1300 1500 1350 385 270 280.8/335
m22x1.5-10		 0 mm
TAS AT 09 9 33213
218248		 120 x 120 Disc (22.5*) 2280 1300 1500 1350 385 270 280.8/335
m22x1.5-10		 120 mm
